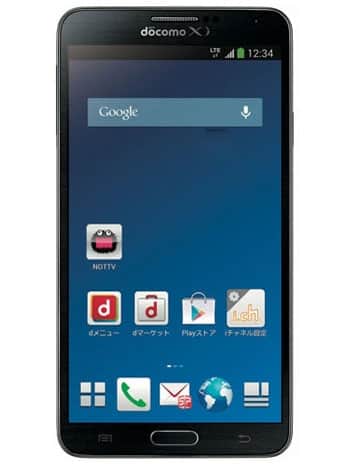

Samsung SC-01F

Overview

Samsung SC-01F runs on the processor 2.2Ghz Qualcomm Snapdragon 800 MSM8974AA v.2 (Snapdragon S4 Prime) with Quad-core . It has internal memory 32GB and RAM (RAM) 3GB and supports microSD, up to 64 GB (dedicated slot), 2 GB included. This model also has 3.5mm jack, supports Bluetooth version 4.0, A2DP, EDR, LE and GPS technology Yes, with A-GPS, GLONASS, BDS . The USB port supports microUSB 2.0 (MHL 3 TV-out), USB Host and Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot. Its technical characteristics are also the screen size 5.7 inches (~74% screen-to-body ratio), the resolution 1080 x 1920 pixels (~388 ppi pixel density) and the type Super AMOLED capacitive touchscreen.

SpecificationSamsung SC-01FGalaxy Note 3

Model and Features
Model Samsung SC-01F
Series Galaxy Note 3
Release Date October, 2013
Body Depth 9.8 mm (0.39 in)
Body Dimensions 151.2 x 79.2 mm (5.95 x 3.12 in)
Body Weight 172 g (6.07 oz)
OS Android Lollipop 5.0
Hardware
CPU 2.2Ghz Qualcomm Snapdragon 800 MSM8974AA v.2 (Snapdragon S4 Prime)
CPU Cores Quad-core
RAM 3GB
Internal Memory 32GB
External Memory microSD, up to 64 GB (dedicated slot), 2 GB included
Network and Data
SIM 1 Micro-SIM
2G bands GSM 850/900/1800/1900MHz
3G bands HSDPA 850/900/1900/2100MHz
4G bands LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 28(700)MHz
5G bands -
Technology Data GPRS/EDGE
Display
Screen size 5.7 inches (~74% screen-to-body ratio)
Type Super AMOLED capacitive touchscreen
Resolution 1080 x 1920 pixels (~388 ppi pixel density)
Colors 16M colors
Battery and Keyboard
Battery Removable Li-Ion 3200 mAh
Physical keyboard -
Interfaces
Audio output 3.5mm jack
Bluetooth version 4.0, A2DP, EDR, LE
DLNA -
GPS Yes, with A-GPS, GLONASS, BDS
Infrared port Yes
NFC Yes
USB microUSB 2.0 (MHL 3 TV-out), USB Host
WLAN Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot
