How to Hard/Factory Reset | Bypass screen lock on LG P698?

All tutorials for LG P698

How to Hard Reset on LG P698?

Type 1: Type 2: Type 3: Press the Power button to turn off the phone. Hold down the Power key and the Volume down button for five seconds. Release the Power key but keep holding down the...

How to Factory Reset through menu on LG P698?

Go to the Main menu and then choose "Settings". Now, in Settings go for "Backup & Reset". Then, press "Factory data reset". Click on "Erase Everything"...

How to Flash Stock Firmware on LG P698?

To flash your phone, the following applications should be installed on your PC: LG UP 1.14 LG UP 1.16 UPPERCUT LG Drivers Open LG Up latest version. Turn off your phone and press and hold the Volume up key. Connect...

How to take screenshot on LG P698?

The device must be turned on. Choose what you want to capture. Press and hold the Power button and the Volume Down key. Excellent! The screenshot has been saved.

Top 5 secret codes for LG P698

The first is: *#546368#*885# It is a Hidden Menu , in this menu you can test a lot of options on your device . The second is: *#*#4636#*#* In this menu you can find all information about your phone...

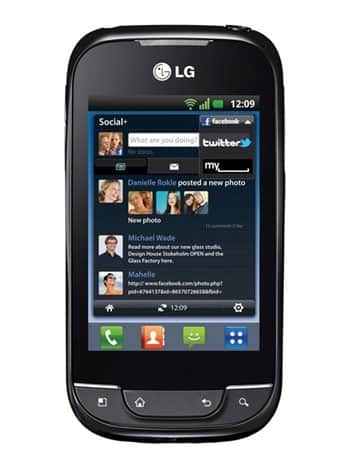

Overview

LG P698 runs on the processor 800 MHz ARM 11 Qualcomm MSM7227A Snapdragon S1 with - . It has internal memory 512MB and RAM (RAM) 512MB and supports microSD, up to 32 GB (dedicated slot), 2 GB included. This model also has 3.5mm jack, supports Bluetooth version 3.0, A2DP, EDR and GPS technology Yes, with A-GPS . The USB port supports microUSB 2.0 and Wi-Fi802.11b/g/n, hotspot. Its technical characteristics are also the screen size 3.2 in (~45.5% screen-to-body ratio), the resolution 320 x 480 pixels (~180 ppi pixel density) and the type TFT.

SpecificationLG P698Optimus Link Dual

Model and Features
Model	LG P698
Series	Optimus Link Dual
Release Date	July, 2011
Body Depth	12.1 mm (0.48 in)
Body Dimensions	113.5 x 59 mm (4.46 x 2.32 in)
Body Weight	129.2 g (4.55 oz)
OS	Android 2.3.3 (Gingerbread)
Hardware
CPU	800 MHz ARM 11 Qualcomm MSM7227A Snapdragon S1
CPU Cores	-
RAM	512MB
Internal Memory	512MB
External Memory	microSD, up to 32 GB (dedicated slot), 2 GB included
Network and Data
SIM	2 Mini SIM
2G bands	GSM 850/900/1800/1900 MHz
3G bands	HSDPA 900/2100 MHz
4G bands	-
5G bands	-
Technology Data	EDGE, GPRS, HSDPA, HSUPA
Display
Screen size	3.2 in (~45.5% screen-to-body ratio)
Type	TFT
Resolution	320 x 480 pixels (~180 ppi pixel density)
Colors	256K colors
Battery and Keyboard
Battery	Removable Li-Ion 1500 mAh
Physical keyboard	-
Interfaces
Audio output	3.5mm jack
Bluetooth	version 3.0, A2DP, EDR
DLNA	Yes
GPS	Yes, with A-GPS
Infrared port	No
NFC	Yes
USB	microUSB 2.0
WLAN	Wi-Fi802.11b/g/n, hotspot
